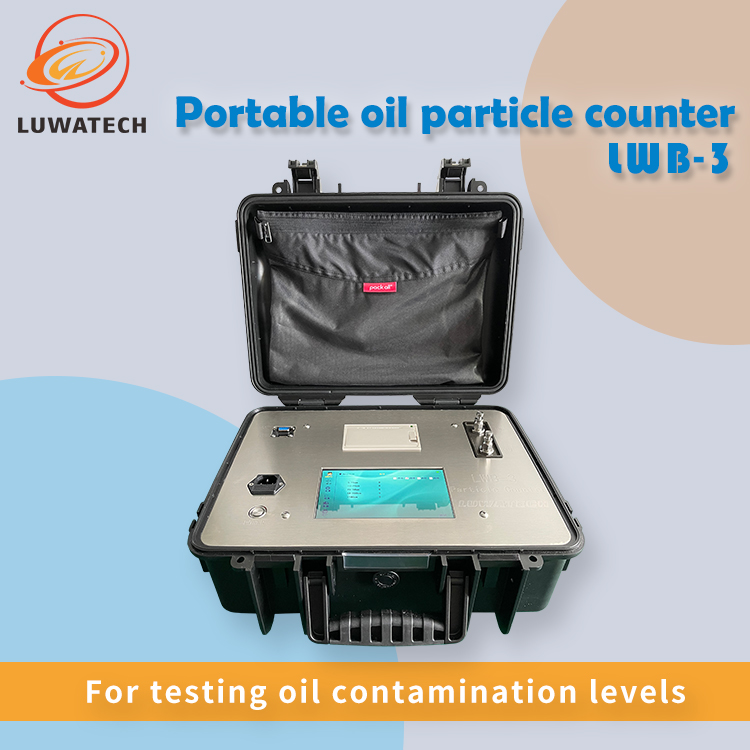

LWB-3 portable particle counter


Light source: semiconductor laser

Part Number  :  LWB-3
Unit Price  :  USD [Please inquire]
Lead time  :  in stock
Inventory quantity   :   [Please inquire]
Stock NO.   :
Email Us Request for Quotation

LWB-3 is full-featured, built-in 13 testing standards and custom testing standards, a test can give all the standards under the data results, built-in printer, you can download the test report.

Model parameters

- Light source: Semiconductor laser


- Particle size range: 0 . 8 - 600 u m (calibrated according to ACF TD calibration 1 ~ 100 u m or ISOM TD calibration 4 ~ 70 u m ( c ) )


- Customisable detection channels: 64 channels, arbitrary particle size settings


- Sensitivity: 1 μ m


- Sampling volume: 0.2 - 1,000 ml 2 - 1,000,000 m l at 0.1 m L intervals. 1 m L


- Sampling precision: better than ± 1 %


- Sampling speed: 5 - 80 m L / m i n


- Purging speed: 5 - 80 mL / m i n


- Purging volume: settable from 0 ml to 90 ml


- Counting accuracy: Less than ± 5 per cent


- Resolution: ≤ 10 %


- Repeatability: R S D < 2 %


- Limit coincidence error: 1 2 0 0 0 - 4 0 0 0 0 particles/m L


- Particle counting relative error: ≤ ± 10 %


- Off-line viscosity: ≤ 1 0 0 c S t (optional air chamber for high viscosity)


- Pressure range: 0 - 0.6 M P a at low pressure, up to 40 M P a at high pressure (with optional external pressure reducing valve).


- On-line test interval: any setting


- Internal memory: 2,000,000 measurement results


- Sample temperature: 0 °C ~ 80 °C


- Operating Temperature: - 20 °C ~ 60 °C


- Storage Temperature: - 30 °C ~ 80 °C


- Power supply: AC 1 000 - 2 400 V, 50 / 60 Hz


- Battery capacity: 52,000 m A h


- Battery operation time: 6 - 8 hours


- Dimensions: 420 × 326 × 182 mm


- Weight: 8.9 k g
