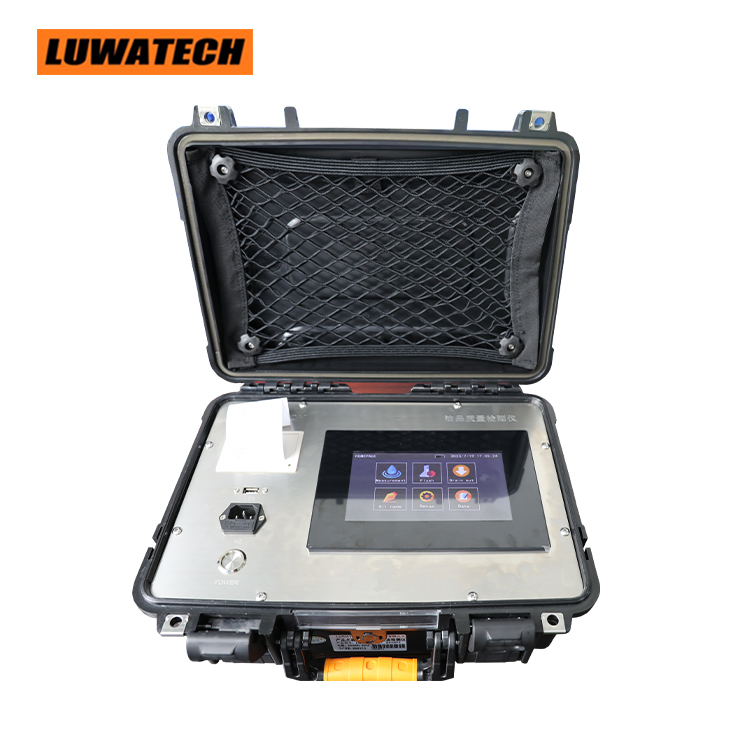

LWB-15 Oil Quality Rapid Tester


Light source: semiconductor laser

Part Number  :  LWB-15
Unit Price  :  USD [Please inquire]
Lead time  :  in stock
Inventory quantity   :   [Please inquire]
Stock NO.   :
Email Us Request for Quotation

LWB-15 lubricant quality rapid tester is based on the combination of oil particle counter, metal abrasive particle sensor and six-parameter oil characteristic sensor.

Model parameters

- Light source: semiconductor laser


- Detection parameters: cleanliness, moisture, density, viscosity, water activity, dielectric constant, temperature, ferrous and non-ferrous particles


- Flow rate range: 2 0 - 5 0 0 m L / m i n


- Sample viscosity: ≤ 3 5 0 c S t


- In-line test pressure: 0.1 - 3 M p a (optional) 1 - 3 M p a (up to 40 M p a with optional pressure reducer)


- Particle size range: 1 - 5 000 0 μ m (with optional sensor)


- Interface: RS 485 interface


- Data storage: 1,000,000 data sets.


- Sensitivity: 1 μm or 4 μm (c )


- Limiting coincidence error: 1 0 0 0 0 grains/m l


- Counting volume: 1 - 9 9 9 m l


- Counting accuracy: ± 0.5 contamination levels 5 contamination levels


- Protection class: IP 5 6 L


- Test interval: 1 second - 24 hours


- Test sample temperature: 0 - 80 °C


- Operating Temperature: - 20 - 60 °C


- Power supply: AC 220 V ± 10 %, 50/60 Hz or DC 12 - 40 V
